Metalmade’s Floor Standing Racks come in two specialized options: Networking Racks and Server Racks. Both are designed to securely house and organize your equipment, with features like optimized airflow, cable management, and easy access, ensuring seamless operation of your networking and server systems.

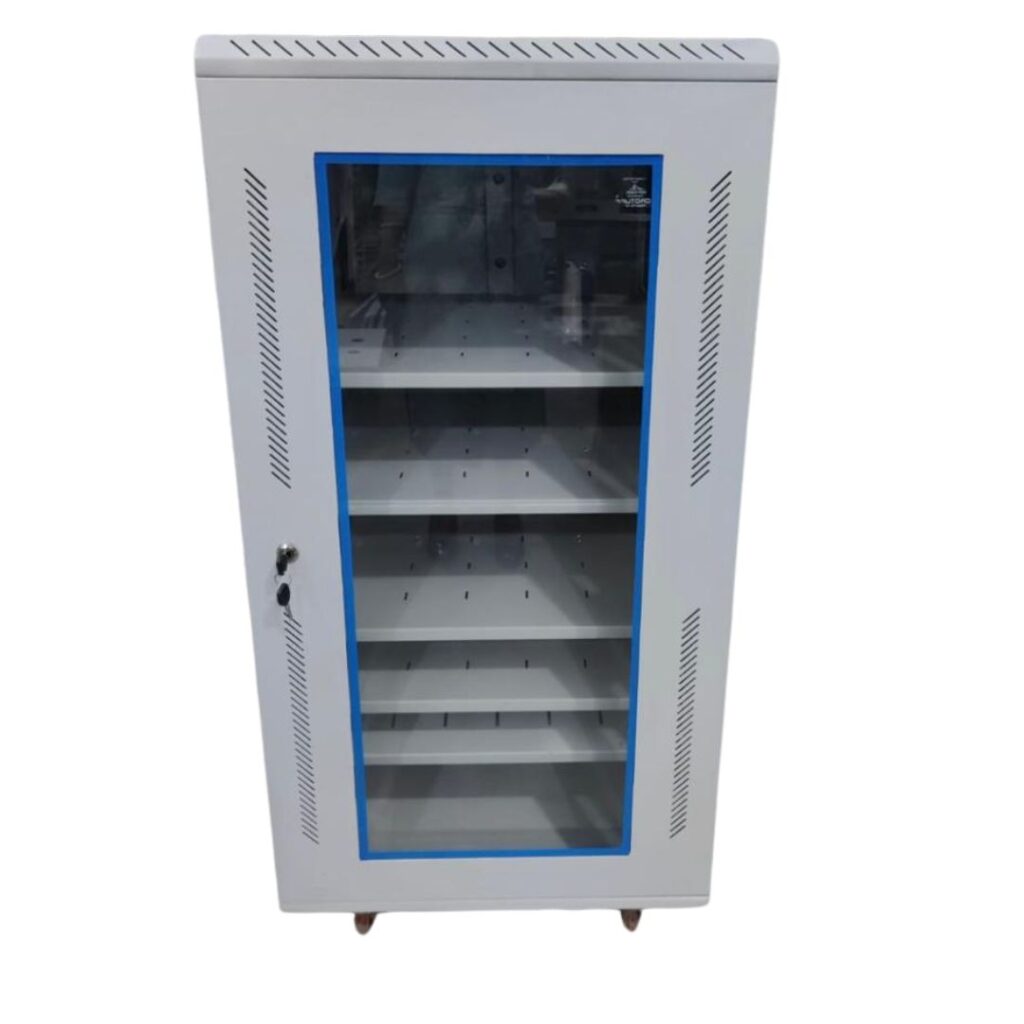

Network Racks
- For medium/large Networking telecom.CCTV, AV and Cable TV applications
- Made of 1.2mm high quality metal sheet
- 1.6mm mounting angle wiht clear “U” marking
- Front with toughened glass, Real MS Door with lock
- Removable side panels
- Cable entry provision at top & bottom
- 2/4 Cooling fan fitting option at top
- Sufficient perforation provided for ventilation
- Finished with 7 process pre-treated powder coating
- Attractive color design- RAL- 7035 or black
- Perforated front & rear doors also available
Variants available in Network Rack
| S.N | PART CODE | SIZE | DIMENTIONS (W*D*H) |
|---|---|---|---|
| 1 | MMI-FS-17U-600 | 17U | 600 X 600 X 825 |
| 2 | MMI-FS-22U-600 | 22U | 600 X 600 X 1048 |
| 3 | MMI-FS-24U-600 | 24U | 600 X 600 X 1136 |
| 4 | MMI-FS-27U-600 | 27U | 600 X 600 X 1269 |
| 5 | MMI-FS-32U-600 | 32U | 600 X 600 X 1492 |
| 6 | MMI-FS-37U-600 | 37U | 600 X 600 X 1715 |
| 7 | MMI-FS-42U-600 | 42U | 600 X 600 X 1938 |
Optional Accessories:-
- Fan Tray with 2/4 Fan
- ACD- 6 Socket 5 Amp
- ACD-5 Socket 5/15 Amp
- ACD- 10 Socket 5 Amp/15 Amp
- Cable Manager 1U MS/PVC- Horizonal
- Cable Manager 1U MS/PVC- Vertical
- Stationary Shelf
- Hardware Packet

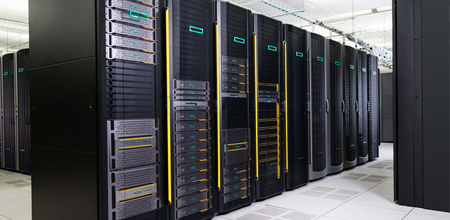

Server Racks
- Made of 1.2mm/1.6 mm high quality metal sheet
- Mounting angle 2mm MS with clear “U” marking
- Front wiht toughened glass, Rear MS door with lock
- Optional perforated front & back doors also available
- Removable side panels
- Cable entry provision at top & bottom
- 2/4 Cooling fan fitting option at top
- Sufficient perforation provided for ventilation
- Finished with 7 process pre-treated powder coating
- Attractive color design- RAL-7035 or black
Variants available in Server Rack
| S.N | PART CODE | SIZE | DIMENTIONS (W*D*H) |
|---|---|---|---|
| 1 | DR-FS-27U-1000 | 27U | 600 X 1000 X 1269 |
| 2 | DR-FS-32U-800 | 32U | 600 X 800 X 1492 |
| 3 | DR-FS-32U-1000 | 32U | 600 X 1000 X 1492 |
| 4 | DR-FS-37U-800 | 37U | 600 X 800 X 1715 |
| 5 | DR-FS-37U-1000 | 37U | 600 X 1000 X 1715 |
| 6 | DR-FS-42U-800 | 42U | 600 X 800 X 1938 |
| 7 | DR-FS-42U-1000 | 42U | 600 X 1000 X 1938 |
| 8 | DR-SR-42U-1000 | 42U | 800 X 1000 X 1938 |
Optional Accessories:-
- Fan Tray with 2/4 Fan
- ACD- 6 Socket 5 Amp
- ACD-5 Socket 5/15 Amp
- ACD- 10 Socket 5 Amp/15 Amp
- Sliding Keyboard Tray
- Cable Manager 1U MS/PVC- Horizonal
- Cable Manager 1U MS/PVC- Vertical
- Stationary Shelf
- Hardware Packet
